HDWC-3WA-SI-UL Series
Outside Unit
Inside Unit
Main points
| Sequence | Title | Content |
|---|---|---|

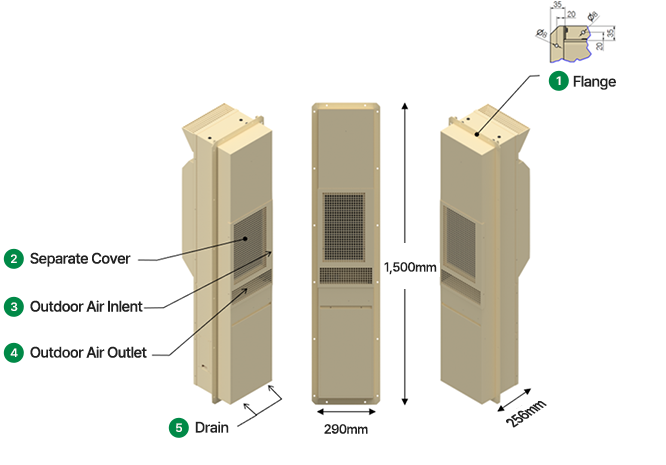

| 1 | Flange | 5/16 inch Total 16 holes for fastening parts consisting of individual holes |
| 2 | Separate Cover | Detachable exterior cover with 10x10 square holes perforated in grid |
| 3 | Outdoor Air Inlet | W222.5 x H360 square hole |
| 4 | Outdoor Air Outlet | W272.5 x H85 square hole |
| 5 | Drain | 5Φ Place 10 round holes in a straight line. |

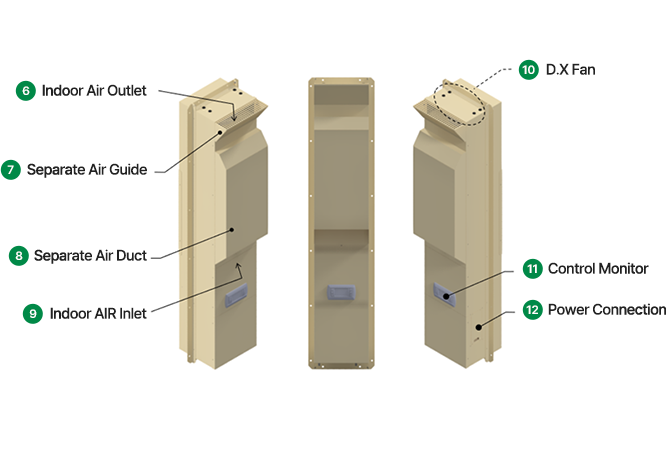

| 6 | Indoor Air Outlet | W285 x H72.5 square hole |
| 7 | Separate Air Guide | Detachable air outlet guide |
| 8 | Separate Air Duct | 10x10 Detachable air intake duct with square holes perforated into a grid |
| 9 | Indoor Air Inlet | W293 x H78.8 square hole |
| 10 | D.X Fan | |
| 11 | Control Monitor | 7 inch Equipment Operation Monitor |
| 12 | Power Connection | AWG16 / 1.5SQ Power / Shielded Cable AWG20(0.75SQ) × 3C |
General Data
| Product | 1,000W / Wall Mounted | ||
|---|---|---|---|
| HVAC | |||
| General | Model | HDWC-02AA-SC-UL | |
| Type | Wall Mounting | ||
| Refrigerant | R32 | ||
| Nominal Cooling Capacity | W (USRT) | 1,000 (0.28) | |
| Ambient Temp. and Humidity | ℃ | – 30 ~ 50 | |
| Air Flow Rate | CMM | 10.6 | |
| Power Supply Range | V / Ph / Hz | 208 × 1 × 60 | |
| Operating Power | VDC | 24 | |
| Rated Cooling Operating Current | A | 3.66 | |
| Rated Heating Operating Current | A | 7.63 | |
| Max. Current | A | 11.29 | |
| Communication | RS 485 / LON / CAN / Ethernet | ||
| Rated Cooling Operating Power | W | 695 | |
| Rated Heating Operating Power | W | 1585 | |
| Total Operating Power | W | 2110 | |
| Control Type | Temp', Humid', DP Auto Control | ||
| Optional Function | Dew point Control | ||
| Dimensions(mm) | W × D × H | 290 × 256 × 1500 | |
| Noise | dB(A) | ≤70 | |
| Weight (Net.) | kg | 35 | |
| Paint and Varnish | ISO12944 C5H | ||
| Certification | UL60335-2-40 / CE | ||
| Protection | IEC60529 IP55 | ||
Component data
| Components | 13,000W / Wall Mounted | ||
|---|---|---|---|
| Air Cooled Chiller | |||
| Compressor | Rotary type Type | Fixed-Speed | |
| Quantity | Set | 1 | |
| Evaporator | Type | Fin-Tube | |
| Quantity | Set | 1 | |
| Evaporator Fan | Type | EC Fan Φ190mm | |
| Quantity | Set | 1 | |
| Heater | Type | Positive Temperature Coefficient | |
| Quantity | 1 | ||
| Quantity | Set | 2 | |
| Condenser | Type | Fin-Tube | |
| Quantity | Set | 1 | |
| Condenser Fan | Type | EC Fan Φ190mm | |
| Quantity | Set | 1 | |
